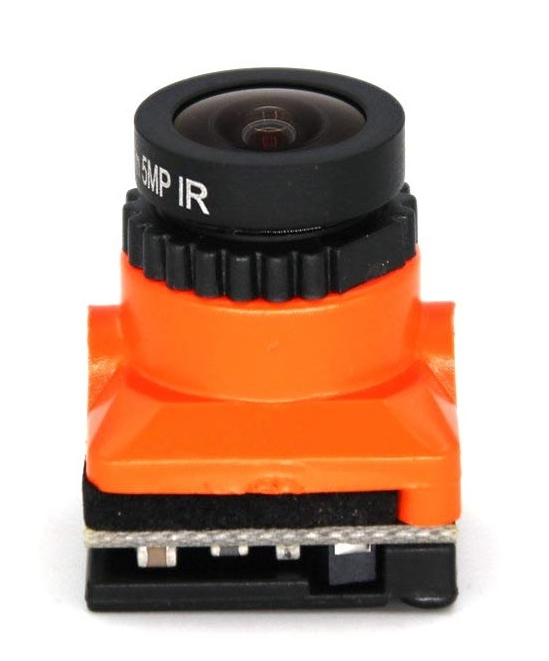

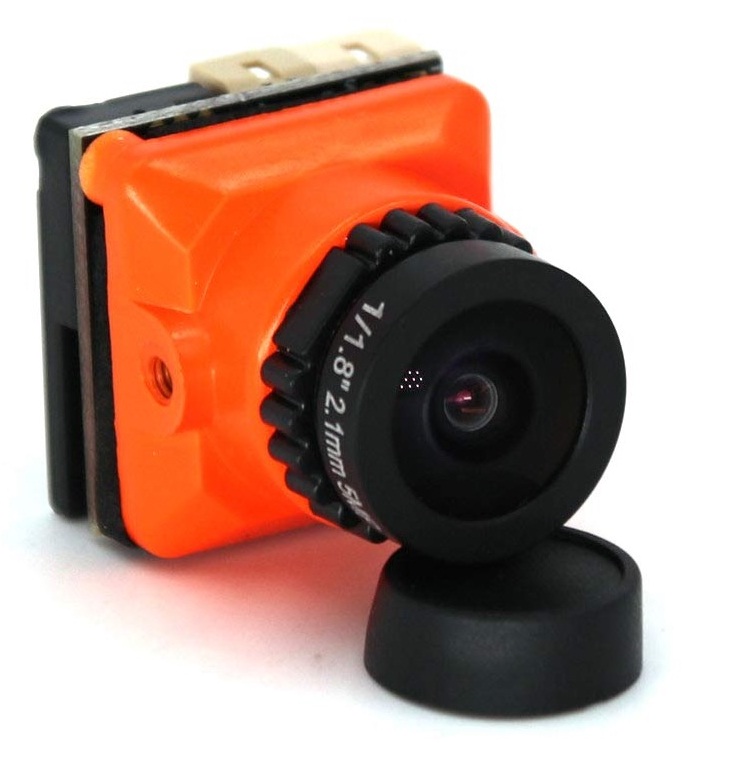

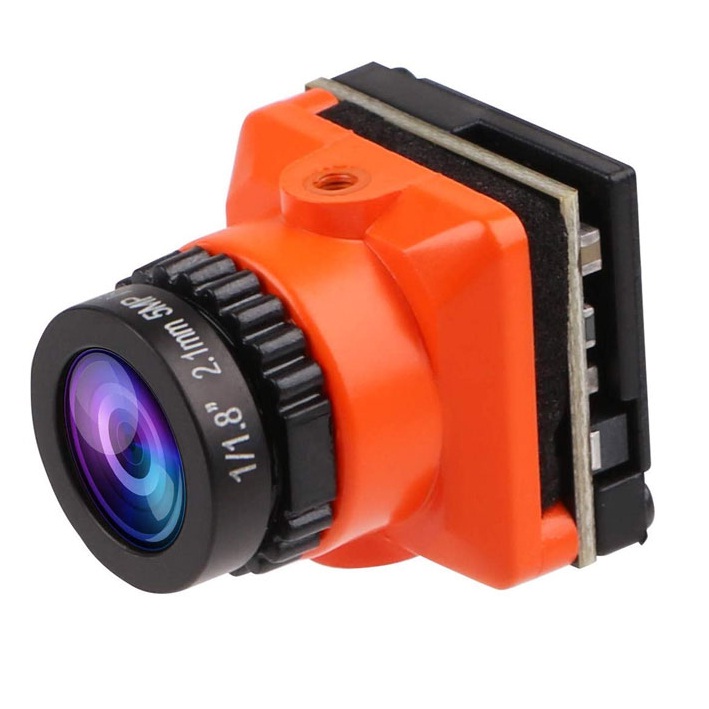

If you want to build a drone, an FPV camera is one of the most important components to include. The receiver receives video or photos from the FPV camera. As a result, a camera is necessary for the drone’s construction. This 1/3″ CMOS 1500TVL Mini FPV Camera support both PAL and NTSC where PAL is slightly sharper and clearer text display on the screen and NTSC is used for slightly higher frame rate, and it helps with smoother FPV video playback also the lens can be tilted up to 158 degrees. The night-vision starlight camera is small in size but it has an  Illumination of 0.001Lux/1.2F.

This camera uses a high-performance 1/3” CMOS camera with a 2.1mm lens for exceptional clarity and resolution. It provided an excellent picture quality in all light conditions and Wide Dynamic Range (WDR) and 3D Noise Reduction (3DNR) combine to give superb image clarity and definition. This Type of FPV camera is used for many of the same applications like Aerial photography and cinematography, remote inspections, security, Military, and Other entertainment purposes.

Note : Color may be different in terms of camera

Features:

1. Lens:2.1mm
2. Min illumination:0.001Lux/1.2F
3. Power: DC 5V-30V
4. Electronic Shutter Speed: PAL
5. Horizontal Resolution:1500TVL
6. Day/Night: Auto/Color/B*W
7. Signal System: PAL/NTSC (OSD Internal adjustable)
8. DNR:3DNR
9. Illumination, the effect is a good, quality-assured, ultra-small size, very suitable for FPV
10. Color fidelity, low illumination, micropower consumption

Package Includes:

1 x 1/3″ CMOS 1500TVL Mini FPV Camera 2.1mm Lens PAL / NTSC With OSD
1 x OSD Board
1 x 2Pin Cable
1 x 3Pin Cable
1 x Product Manual
1 x Set of screws
