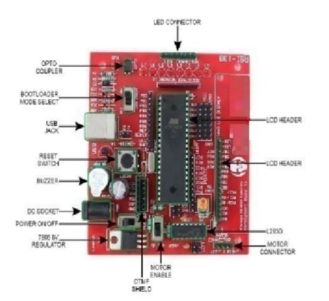

ATmega-16/32 Robotics Mini Development Board V 2.0

ATmega-16/32 Robotics 40 Pin Mini development Board is ideal for learning R microcontrollers. This board contains requirements like LEDs, Switches, in system programming, RS232 communication, etc . All Ports of controller are accessible though standard 10 pin FRC connector or simple header pins. Also 34*11 general purpose area of normal grid is provided for extra development on the same board. This board supports many 40 pin controllers which have identical pin configurations like AT90S8535, ATMega16, ATMeg32 etc.

Features of ATmega-16/32 Robotics Mini Development Board V 2.0

• 16 Kbytes of In-System Self-programmable Flash program memory.
• 512 Bytes EEPROM.
• 1 Kbyte Internal SRAM.
• Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface.
• Byte-oriented Two-wire Serial Interface.
• Programmable Serial USART.
• Master/Slave SPI Serial Interface.
• Programmable Watchdog Timer with Separate On-chip Oscillator.
• On-chip Analog Comparator.
• 32 Programmable I/O Lines.
• Operating voltage from 5.0V - 25 V.
• 1*On board ATmega 16 Microcontroller.
• 1*On board Reset Switch.
• 1*On board L293D motor driver.
• 1*
